Helmholtz

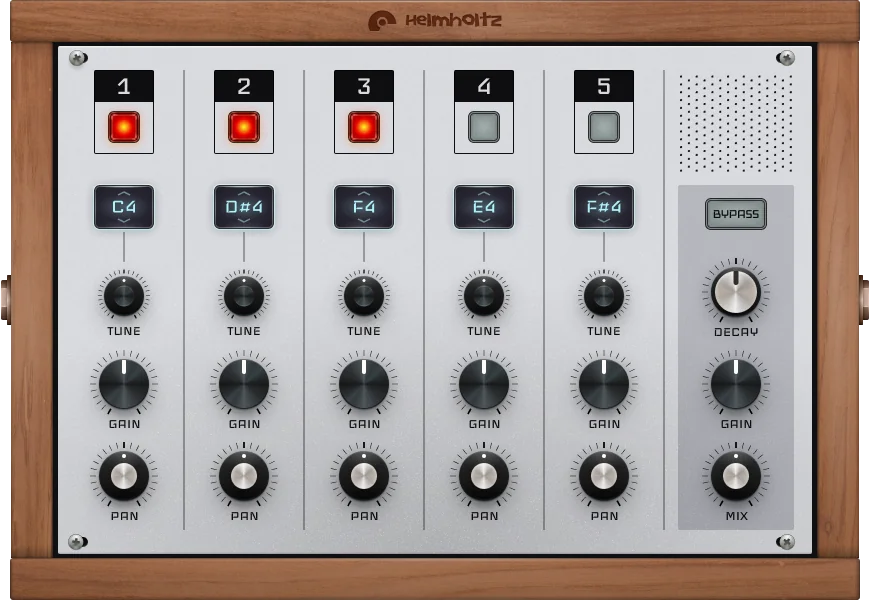

Helmholtz Device

Essentials

Helmholtz adds pitched resonances to incoming audio using up to five delay lines tuned to specific frequencies. The resonance continues after the incoming signal becomes quiet, creating sustained harmonic textures from percussive or noisy sources. Perfect for transforming drums into pitched textures, adding harmonic content, or creating evolving pads from noise.

  • Five delay lines (filters) that can be tuned to specific musical notes

  • Comb filter behavior that highlights certain frequencies and their overtones

  • Resonance continues after input signal becomes quiet

  • Transforms percussive sources into pitched textures

  • Must be placed after an audio source

Voices

Helmholtz Voices

Voice activation

Toggle each of the five voices on or off

Pitch

Musical note pitch per voice

Tune

Fine-tune pitch

Gain

Output level per voice

Pan

Stereo position per voice

Output

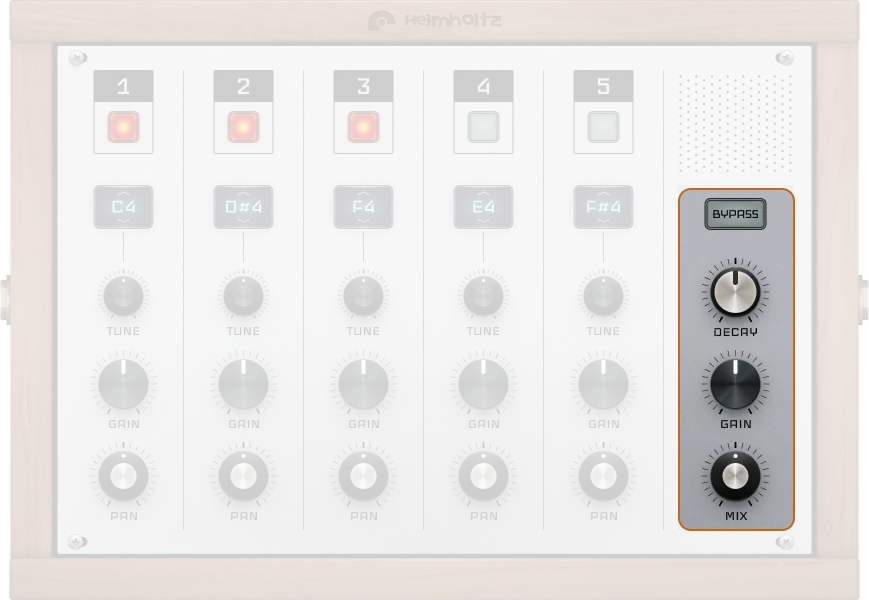

Helmholtz Output

Decay

Controls how long the delay lines resonate after the input signal becomes quiet (0-100%). Higher values create longer, louder resonance.

Gain

Output level of the device (-∞ to 0 dB). Can only reduce gain, not boost.

Mix

Dry/wet balance (0-100%). 0% = dry (0% effect), 100% = wet (100% effect)

On/Off

Activates or bypasses the effect

Practical Tips

Practical Tips

  • Melodic automation: automate pitch for sequences.

  • Stereo spread: pan voices for width.

  • Layering: combine with delays/reverb for rich textures.
